高纯度黑磷晶体 Black Phosphorus-Crystal
晶体结构:正斜方晶结构晶体尺寸:~10mm
电学性能:半导体
晶体结构:斜方晶系
晶胞参数:a = 0.331 nm, b= 1.048, c = 0.437 nm, α = β = γ = 90°
晶体类型:合成
晶体纯度:>99.995%
性质:半导体

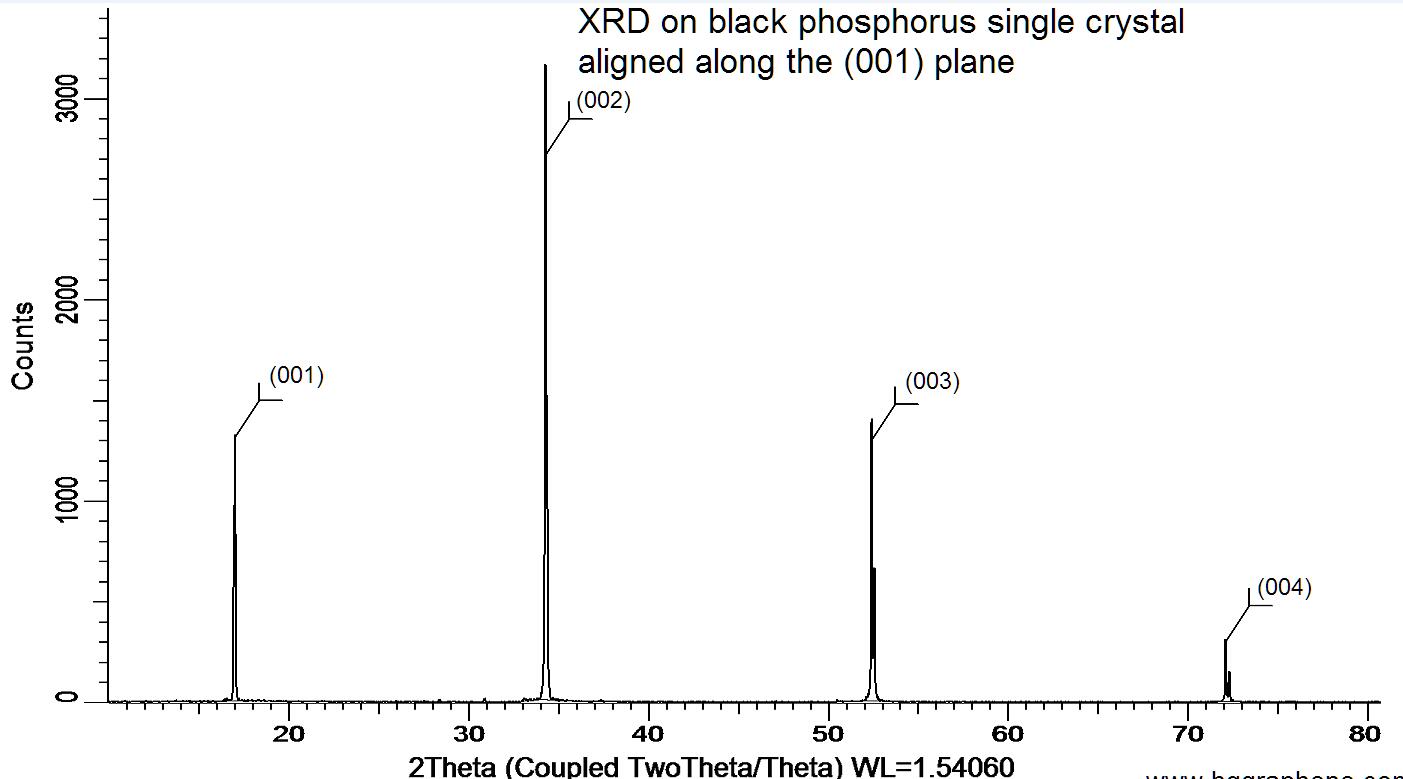

X-ray diffraction on a black phosphorus single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 4 XRD peaks correspond, from left to right, to (00l) with l = 1, 2, 3, 4


Powder X-ray diffraction (XRD) of a single crystal black phosphorus. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

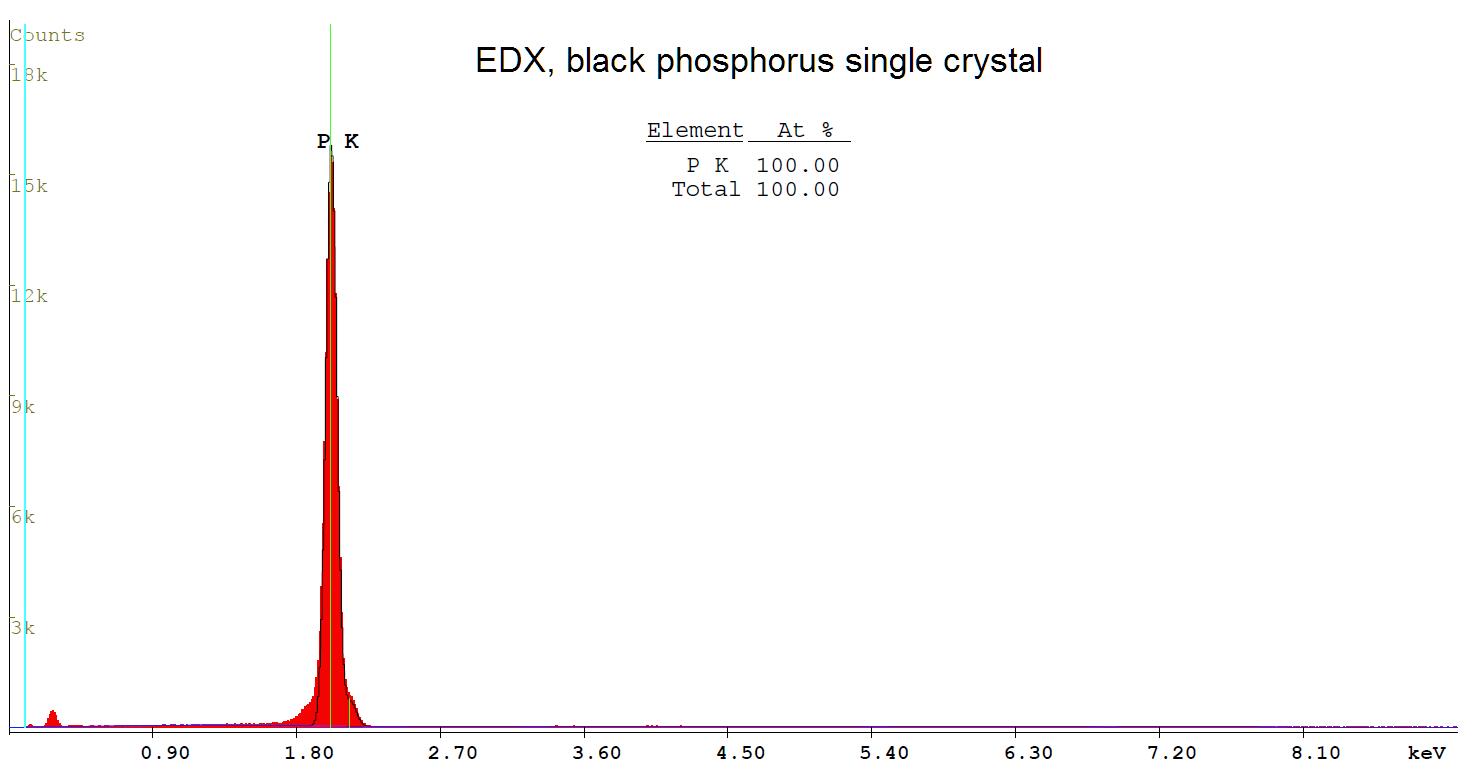

Stoichiometric analysis of a single crystal black phosphorus by Energy-dispersive X-ray spectroscopy (EDX).

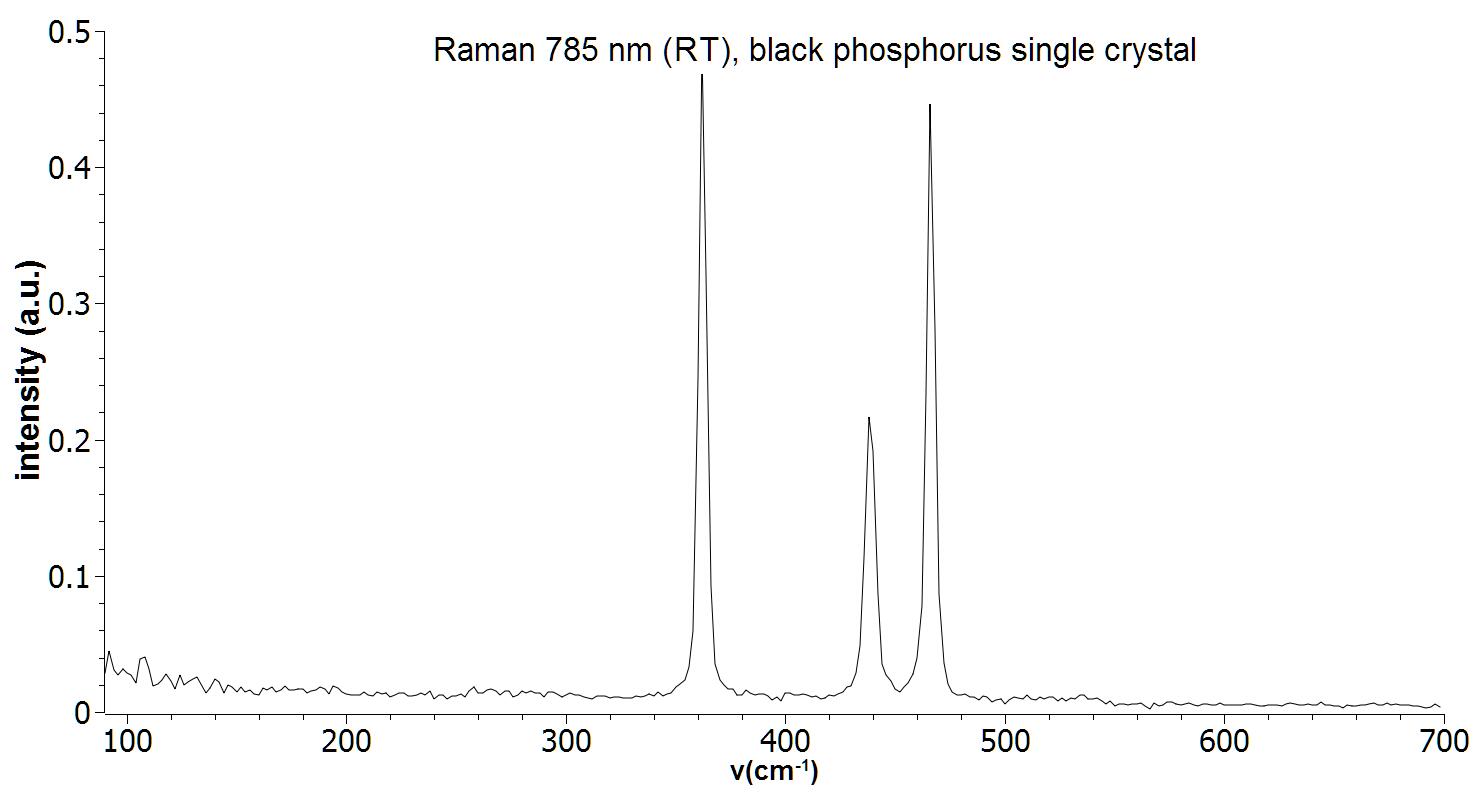

Raman spectrum of a single crystal black phosphorus. Measurement was performed with a 785nm Raman system at room temperature.
