绝缘体

  • 白云母(5片装) MICA muscovite V1
  • 白云母(5片装) MICA muscovite V1
  • 白云母(5片装) MICA muscovite V1
白云母(5片装) MICA muscovite V1白云母(5片装) MICA muscovite V1白云母(5片装) MICA muscovite V1

白云母(5片装) MICA muscovite V1

白云母 MICA muscovite V1 (Muscovite, K2O-Al2O3-SiO2)
晶体尺寸:~25mm
电学性能:绝缘体
晶体结构:单斜晶结构
晶胞参数:a = 0.519, a = 0.901, c = 1.996 nm, α = γ = 90°, β =95.89°
晶体类型:天然
晶体纯度:最高纯度的天然晶体,V1级
晶体包装:5片装

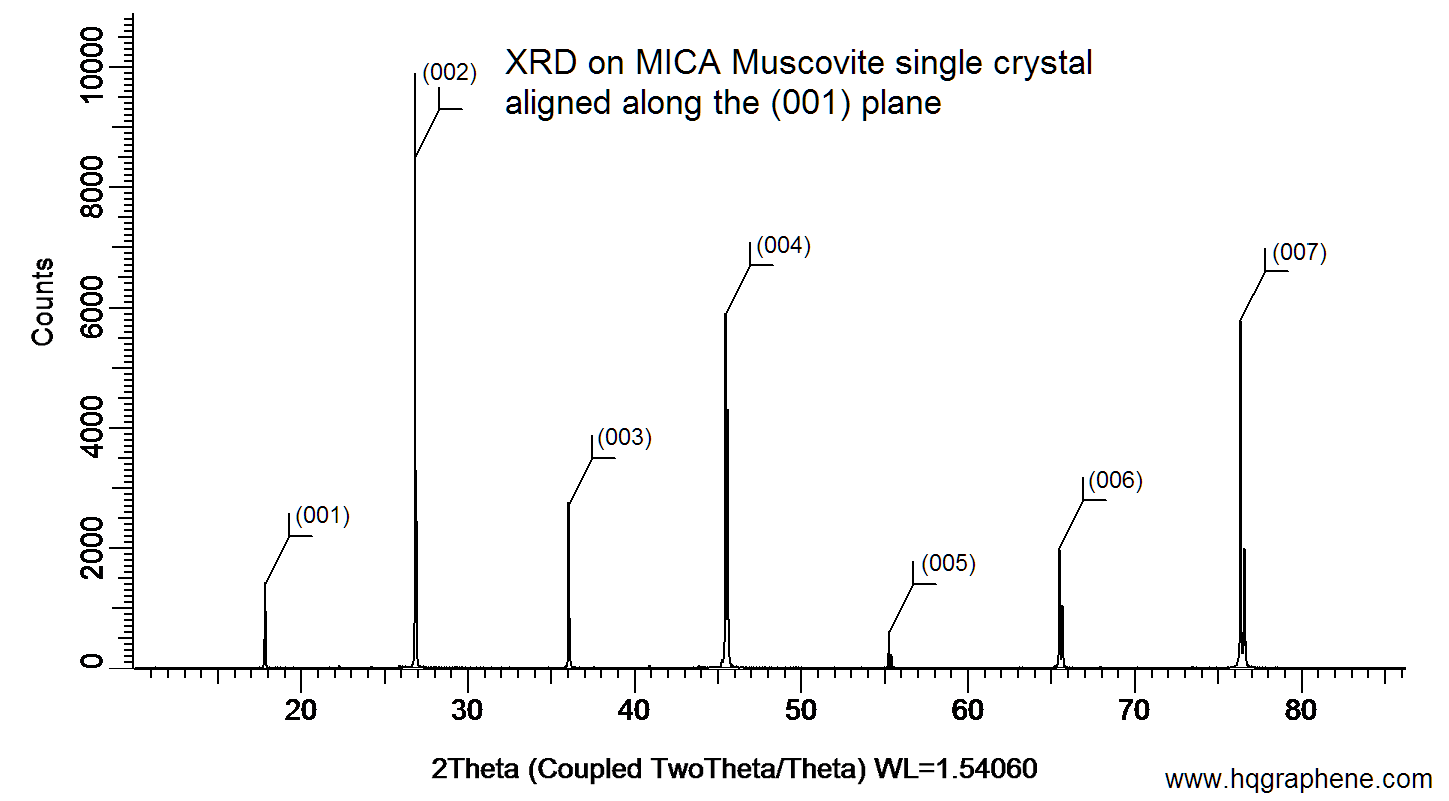

X-ray diffraction on a MICA Muscovite single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker.

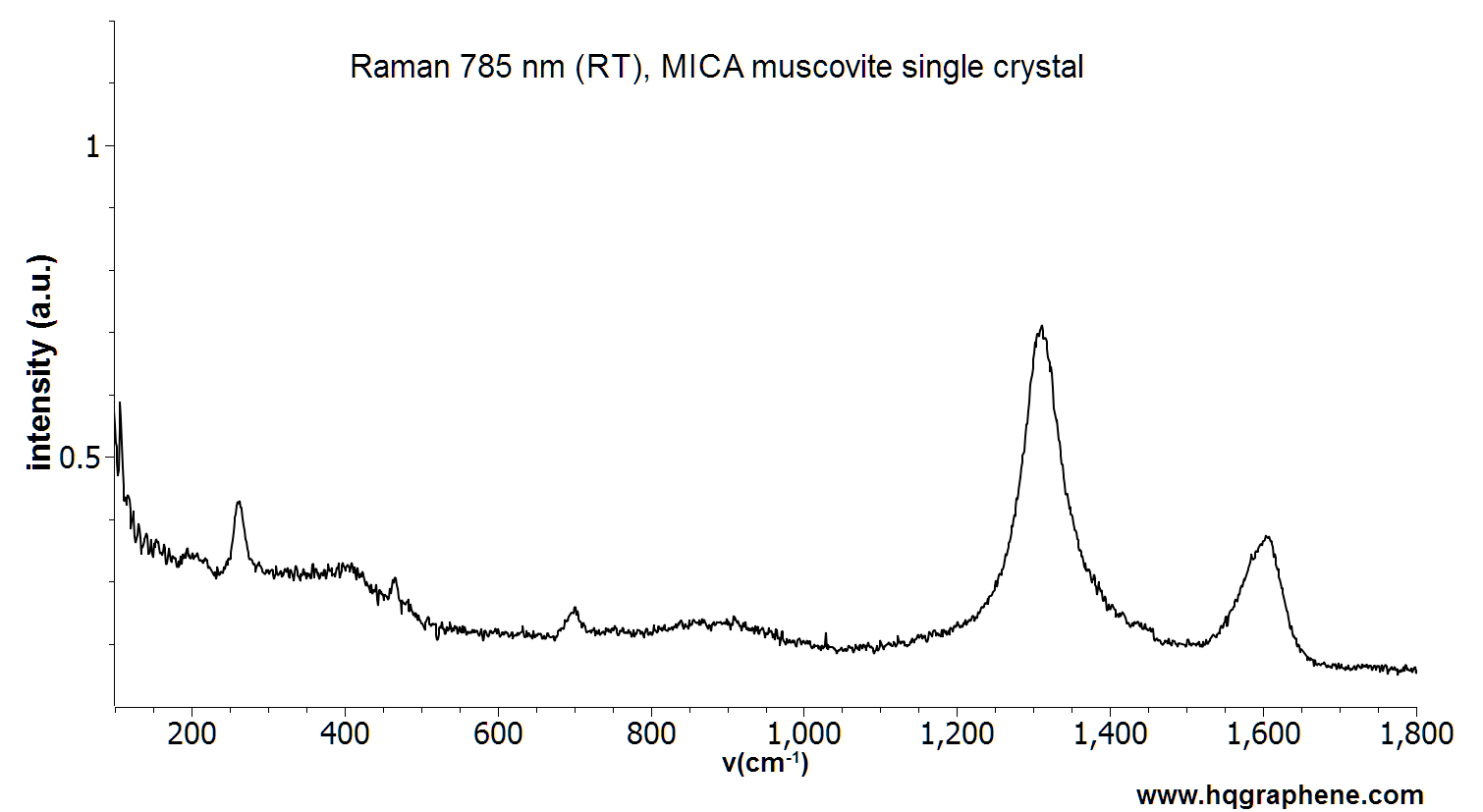

Raman spectrum of a single crystal MICA Muscovite. Measurement was performed with a 785 nm Raman system at room temperature.
