德国HALLE粗糙度计量校准片 PTB Standard Roughness Measurement Standard

德国HALLE粗糙度计量校准片 PTB Standard Roughness Measurement Standard

Product description:
在线订购

在许多工业领域中，表面粗糙度测量起着重要的作用，德国HALLE提供各种国际标准的计较校准片，如粗糙度校准，深度校准，平坦度校准等，所有计量校准片均由PTB或DKD认证证书；

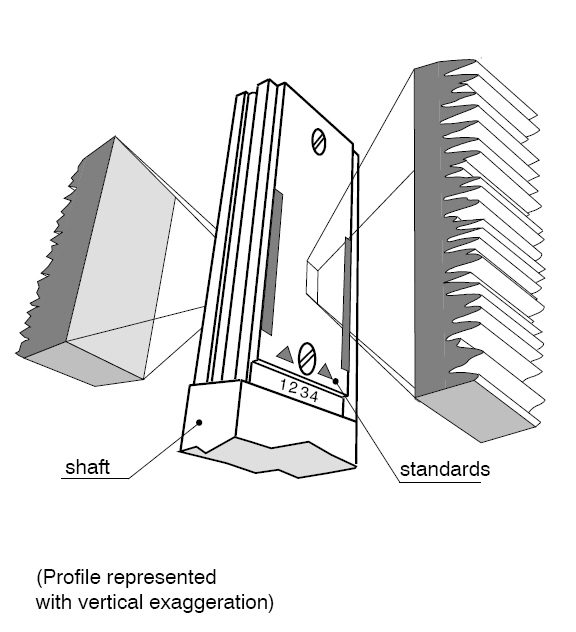

Roughness Measurement Standard(standard version)
LIne of products:KNT 4058/01
Classe A,with calibration certificate for the measurands:Ra,RZ and Rmax Ra=1.5um, Rz=8.5(nominally)

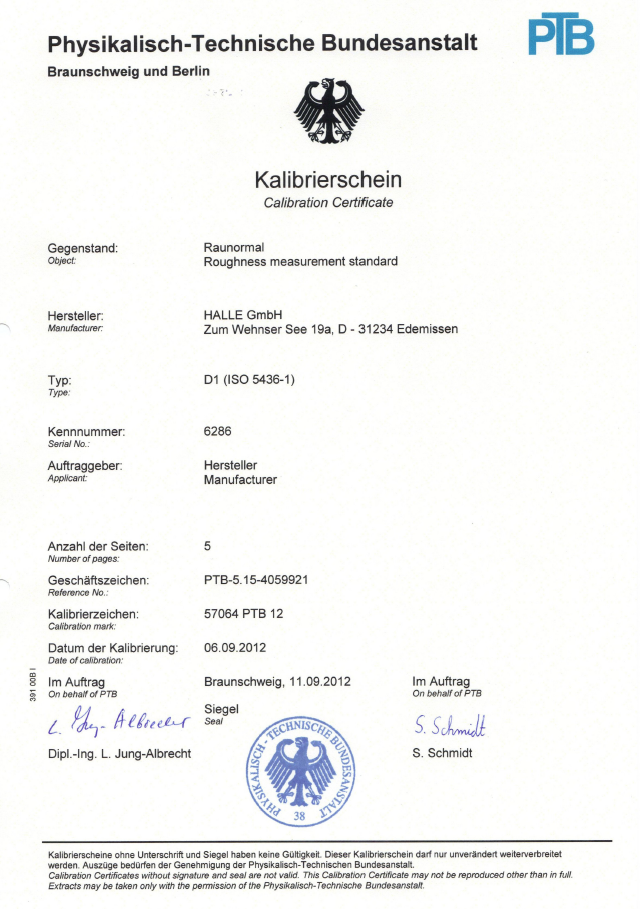

Item NO.:4058/01A3/PK (PTB calibration)

Designation	ISO-Type 5436-1	Design	Line of product	Picture

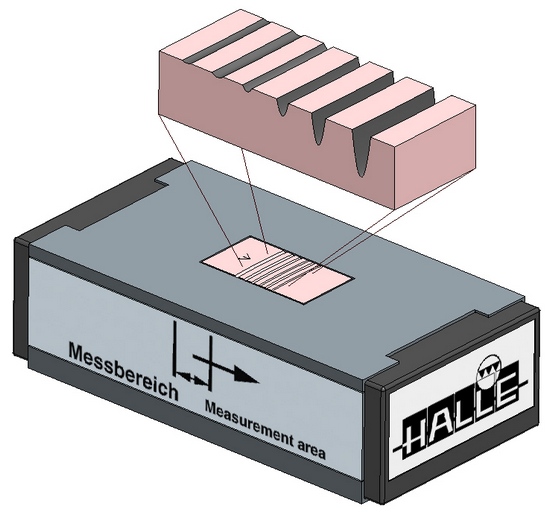

Stylus tip control standard	Type B	3 x 3 taper angles with 70°, 90° und 120°	KNT 4050/01

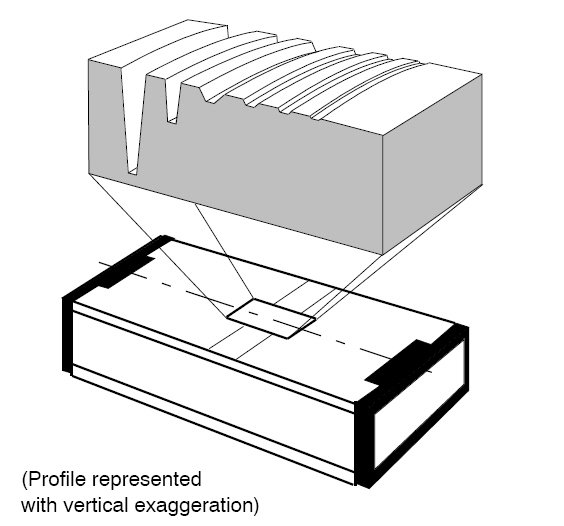

Depth setting standards	Type A	with round base grooves (6 grooves and 3 grooves)	KNT 4060/03

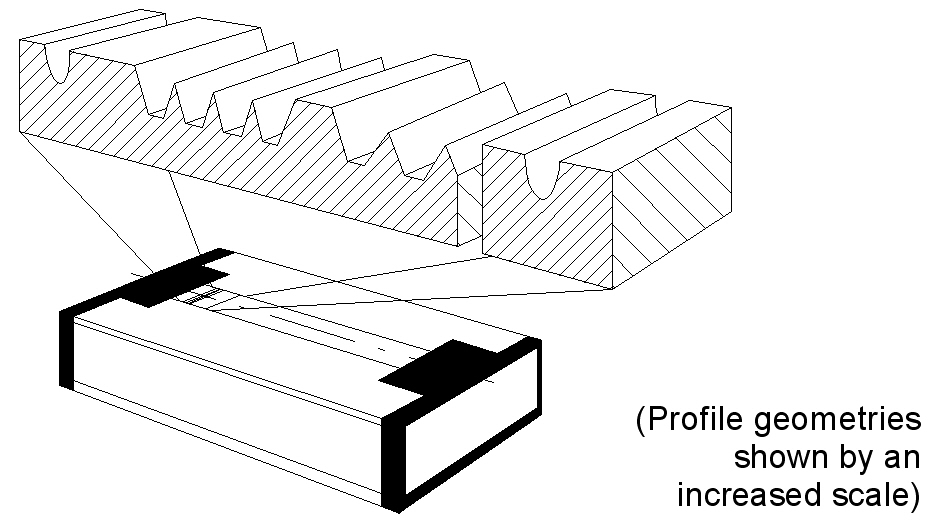

Depth setting standards	Type A	with planar grooves	KNT 4080/03

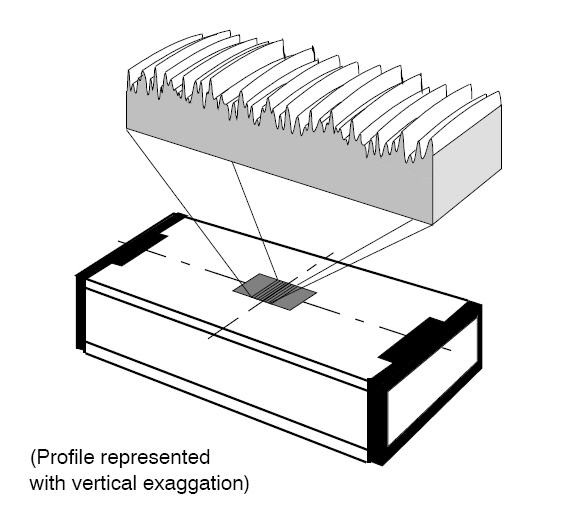

Roughness measurement standards	Type D	standard	KNT 4058/01

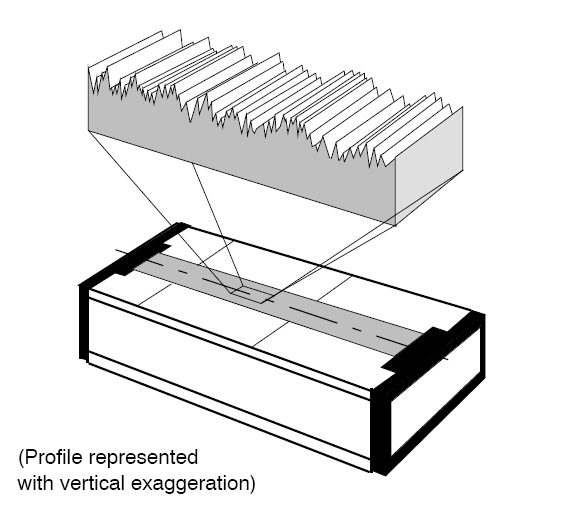

Roughness measurement standards	Type D	inexpensive version	KNT 4058/03

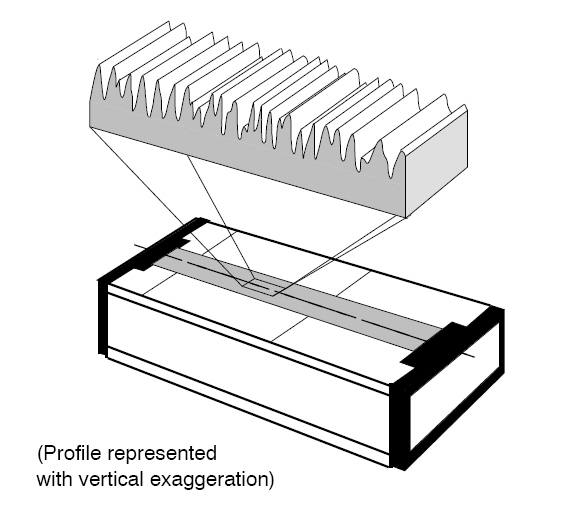

Roughness measurement standards	Type D	for sheet metal surfaces	KNT 4058/02

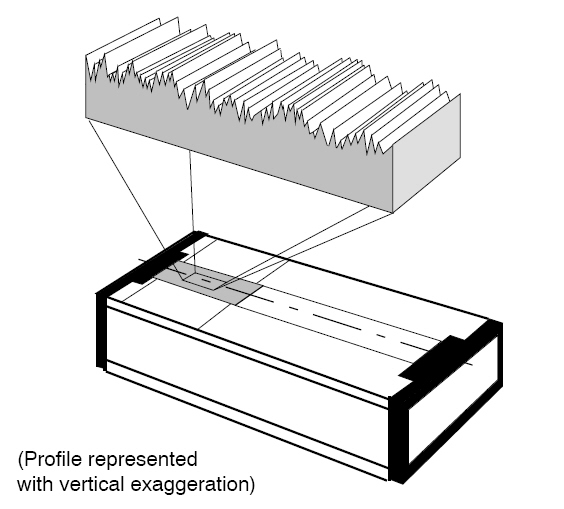

Roughness measurement standards	Type D	for sheet metal measuring stations (for 2+4 Two-Button Stylus)	KNT 2058/05
Roughness measurement standards	Type D	superfine roughness profile	KNT 4070/03
Calibration costs for recalibration
Comparison standards for surface roughness			VOR 2090/01
