高定向热解石墨HOPG

高定向热解石墨 HOPG-ZYB-2mm

Product description:
在线订购

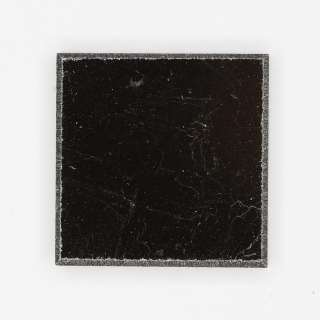

高定向热解石墨 HOPG-ZYB-2mm
标准质量
晶体尺寸：横向~12mm，厚度2mm
电学性能：金属
晶体结构：六边形
晶胞参数：a = b =0.246, c = 0.667 nm, α = β = 90°, γ =120°
晶体类型：合成
晶体纯度：>99.995%
旋转角：0.8° +/- 0.2°

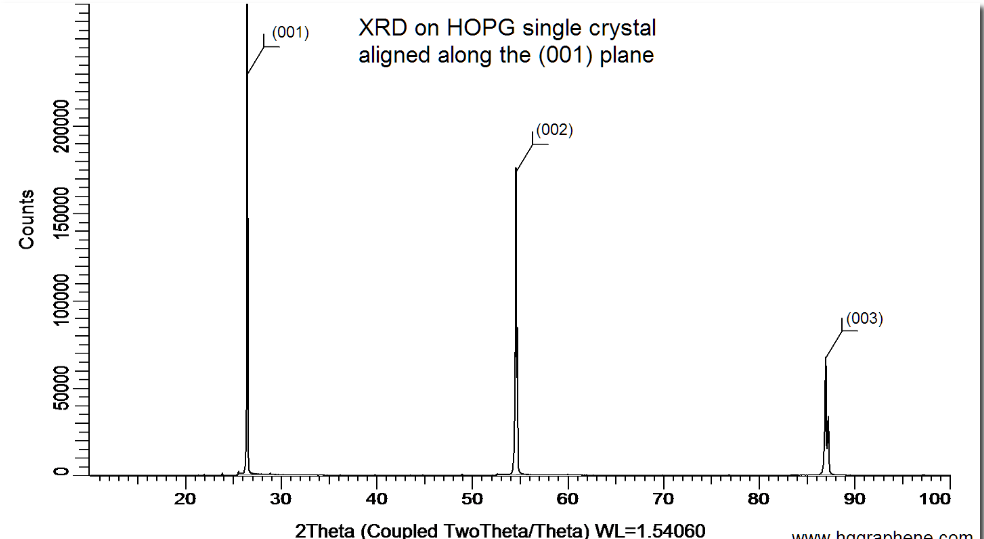

X-ray diffraction on a HOPG single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 3 XRD peaks correspond, from left to right, to (00l) with l = 1, 2, 3

上一个：高定向热解石墨 HOPG-ZYC-1mm下一个：高定向热解石墨 HOPG-ZYA-1mm
