六方氮化硼hBN

  • CVD铜基单层氮化硼薄膜
  • CVD铜基单层氮化硼薄膜
  • CVD铜基单层氮化硼薄膜
CVD铜基单层氮化硼薄膜CVD铜基单层氮化硼薄膜CVD铜基单层氮化硼薄膜

CVD铜基单层氮化硼薄膜

Single layer h-BN (Boron Nitride) monolayer thick film is grown onto 50 um thick copper foils. h-BN is an insulator with a direct band gap of 6 eV with strong ionic bonding between B-N atoms. Our h-BN CVD process has been adopted in order that defect density has been kept low (~1E10-1E11 cm-2) and single domain sizes have been increased to reduce 1D grain boudary defect concentrations. Monolayer h-BN sheets measure ~5cm x 5cm or ~2x2 inches in size.

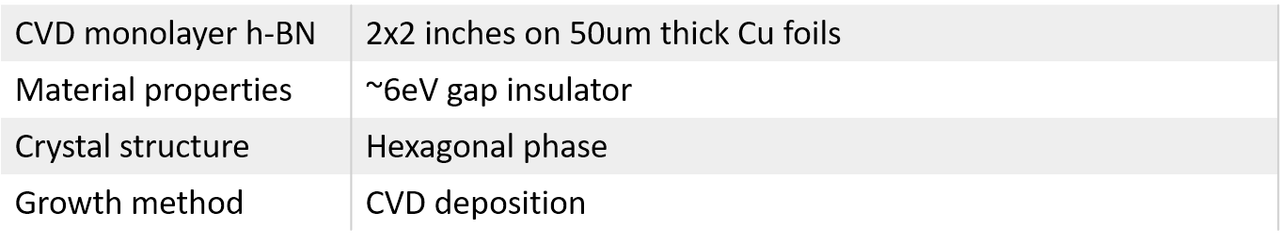

Properties of h-BN
