硒化物晶体

  • 硫硒化钼晶体(99.995%) MoSSe(Molybdenum Sulfide Diselenide)
  • 硫硒化钼晶体(99.995%) MoSSe(Molybdenum Sulfide Diselenide)
  • 硫硒化钼晶体(99.995%) MoSSe(Molybdenum Sulfide Diselenide)
  • 硫硒化钼晶体(99.995%) MoSSe(Molybdenum Sulfide Diselenide)
  • 硫硒化钼晶体(99.995%) MoSSe(Molybdenum Sulfide Diselenide)
硫硒化钼晶体(99.995%) MoSSe(Molybdenum Sulfide Diselenide)硫硒化钼晶体(99.995%) MoSSe(Molybdenum Sulfide Diselenide)硫硒化钼晶体(99.995%) MoSSe(Molybdenum Sulfide Diselenide)硫硒化钼晶体(99.995%) MoSSe(Molybdenum Sulfide Diselenide)硫硒化钼晶体(99.995%) MoSSe(Molybdenum Sulfide Diselenide)

硫硒化钼晶体(99.995%) MoSSe(Molybdenum Sulfide Diselenide)

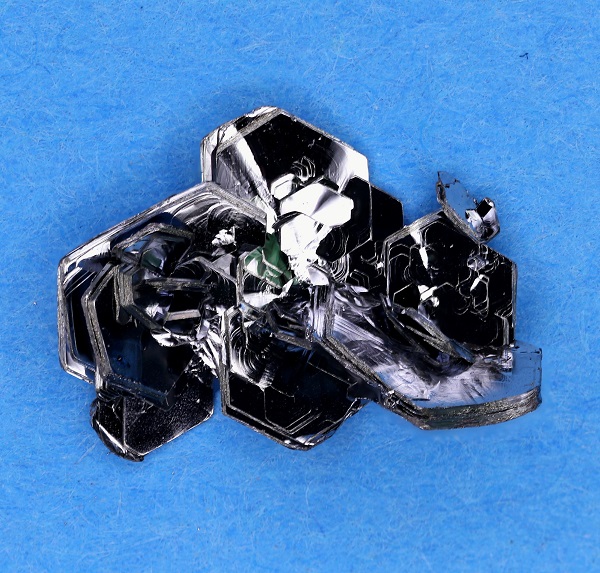

硫硒化钼晶体 MoSSe(Molybdenum Sulfide Diselenide)
晶体尺寸:~6毫米
电学性能:半导体
晶体结构:六边形
晶胞参数:取决于合金成分:a = b = 0.31 -0.33 nm and c = 1.21 -1.29 nm, α = β = 90°, γ = 120°
晶体类型:合成
晶体纯度:>99.995%

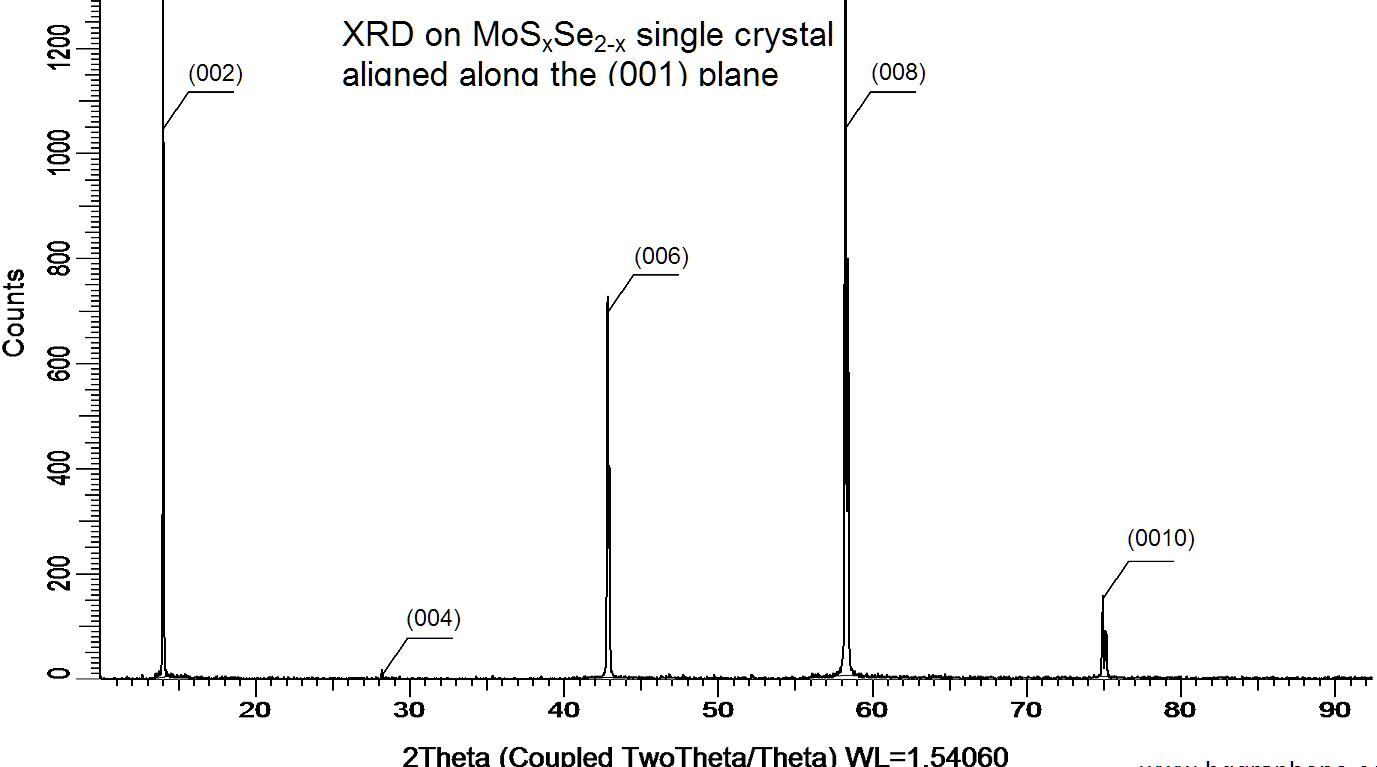

X-ray diffraction on a MoSSe single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 5 XRD peaks correspond, from left to right, to (00l) with l = 2, 4, 6, 8, 10

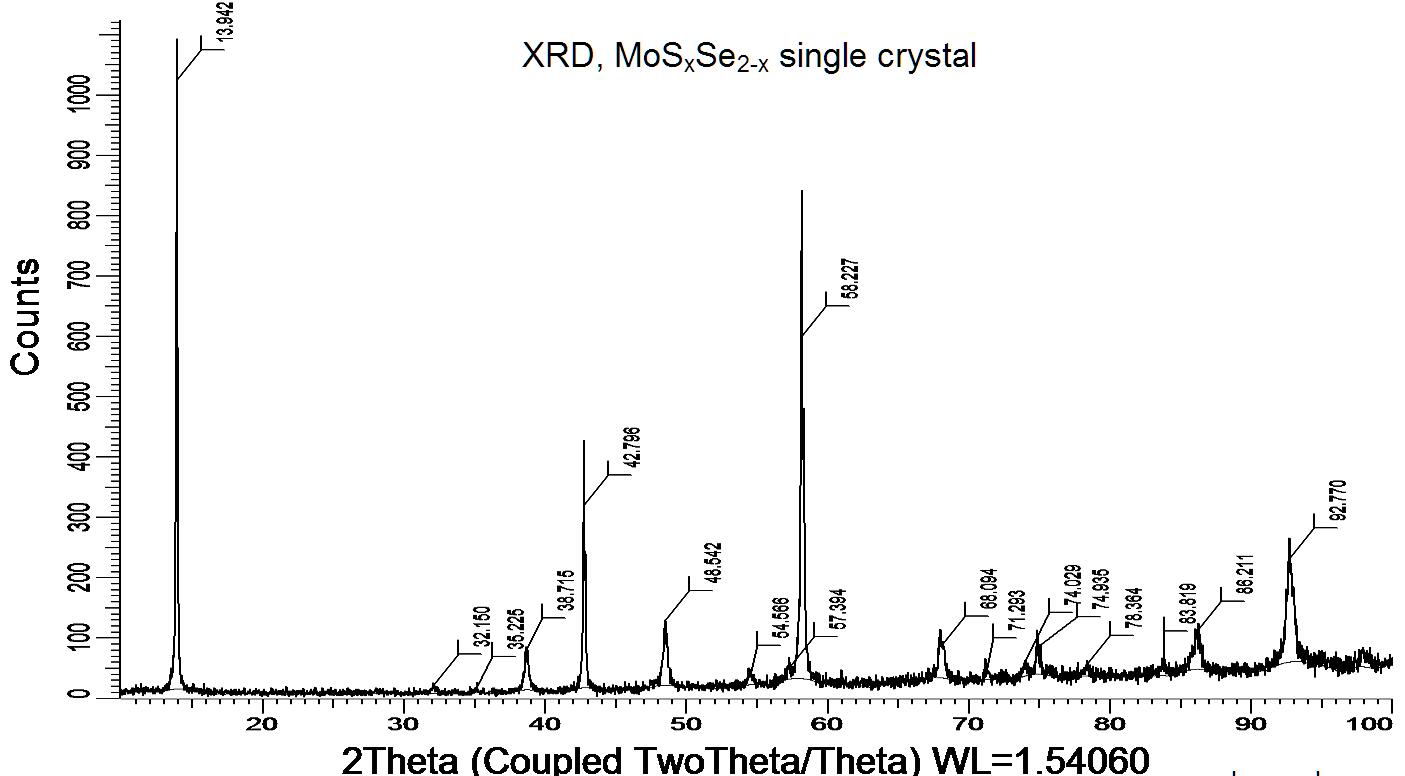

Powder X-ray diffraction (XRD) of a single crystal MoSSe. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

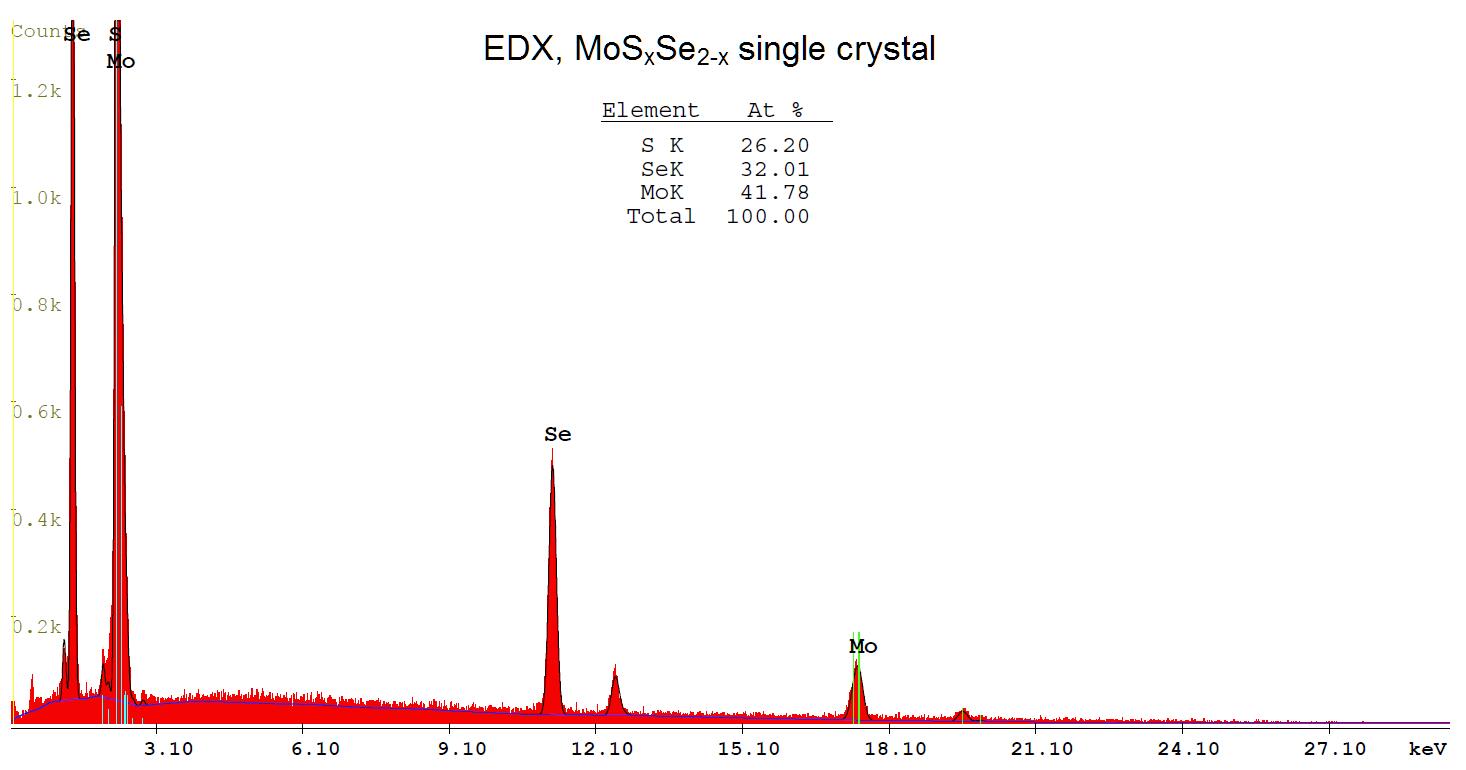

Stoichiometric analysis of a single crystal MoSSe by Energy-dispersive X-ray spectroscopy (EDX).

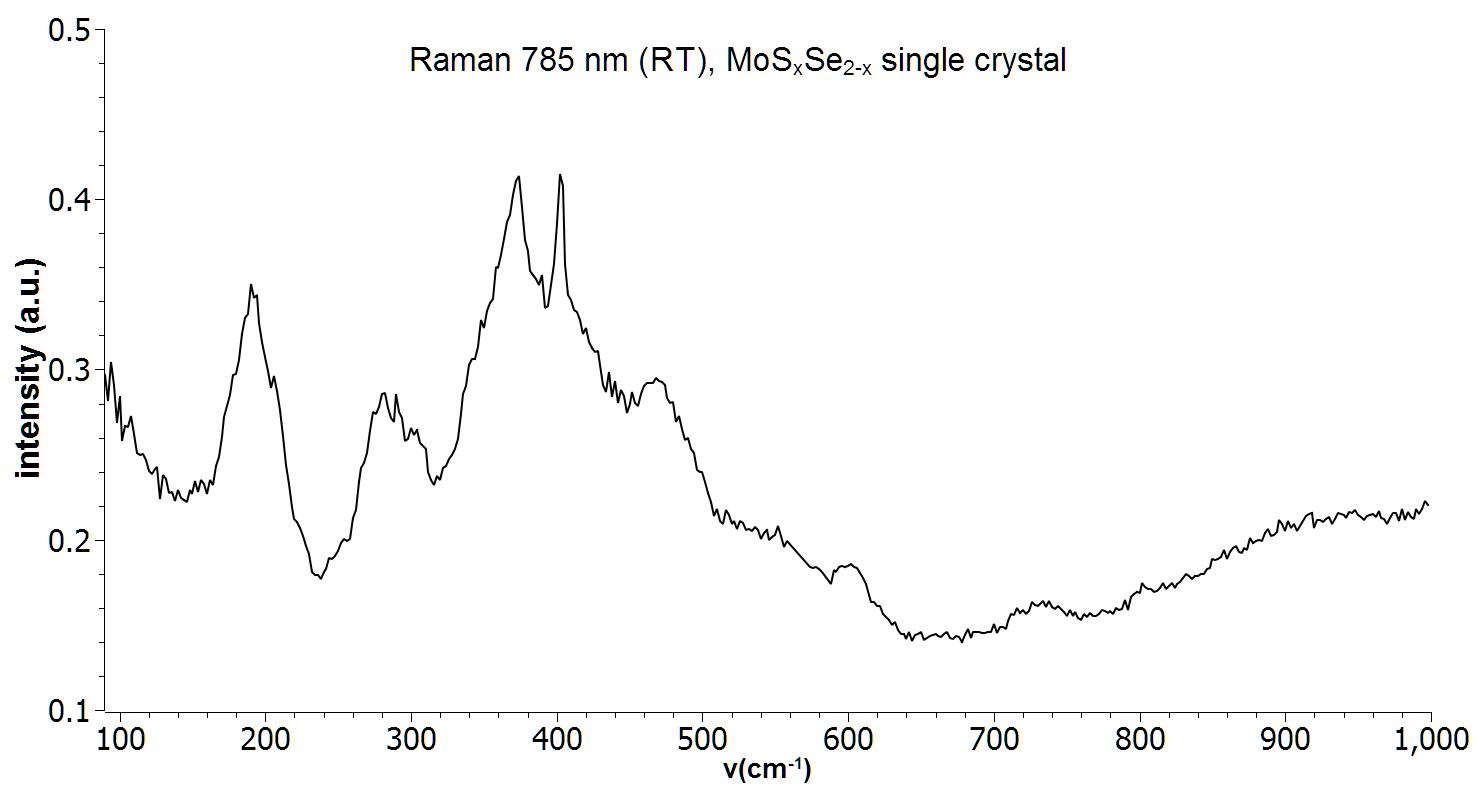

Raman spectrum of a single crystal MoSSe. Measurement was performed with a 785 nm Raman system at room temperature.
